XWM110 Universal fixed wall mount for screen 110 “- 136”

  • Designed for screens 110”–136”
  • Load capacity up to 135 kg
  • VESA support: 100×100 up to 1500×600
  • Screen protection against falling
  • Quick and simple installation
  • Secure locking screws to prevent screen removal
  • Compatible with all wall surfaces
  • Sleek, black powder-coated finish

Downloads

Description

XWM110 – Industrial-Grade Wall Mount for 110”–136” Screens | EDBAK

The EDBAK XWM110 is an ultra-strong, flat wall mount built to handle the largest displays – from 110” to 136”, with a maximum load capacity of 135 kg. Ideal for conference halls, command centres, and event spaces, this mount offers both strength and elegance in one complete solution.

With VESA compatibility from 100×100 up to 1500×600, it supports a wide range of professional screens, including heavy-duty commercial displays and LED panels. Its robust frame ensures safe installation on brick, concrete, plaster, or wooden walls.

Featuring a slim profile of just 42 mm, security lock screws, and tool-free lateral adjustment, the XWM110 offers everything needed for top-tier, large-scale installations.

Additional information

Product specifications

IndexXWM110
CategoryFixed wall brackets
Product groupMounts for screens / monitors
ColorBlack
Warranty5-year limited
Number of screens1
Minimum screen size110″
Maximum screen size136″
Maximum load135 kg
VESA mounts100×100 to 1500×600

Technical specifications

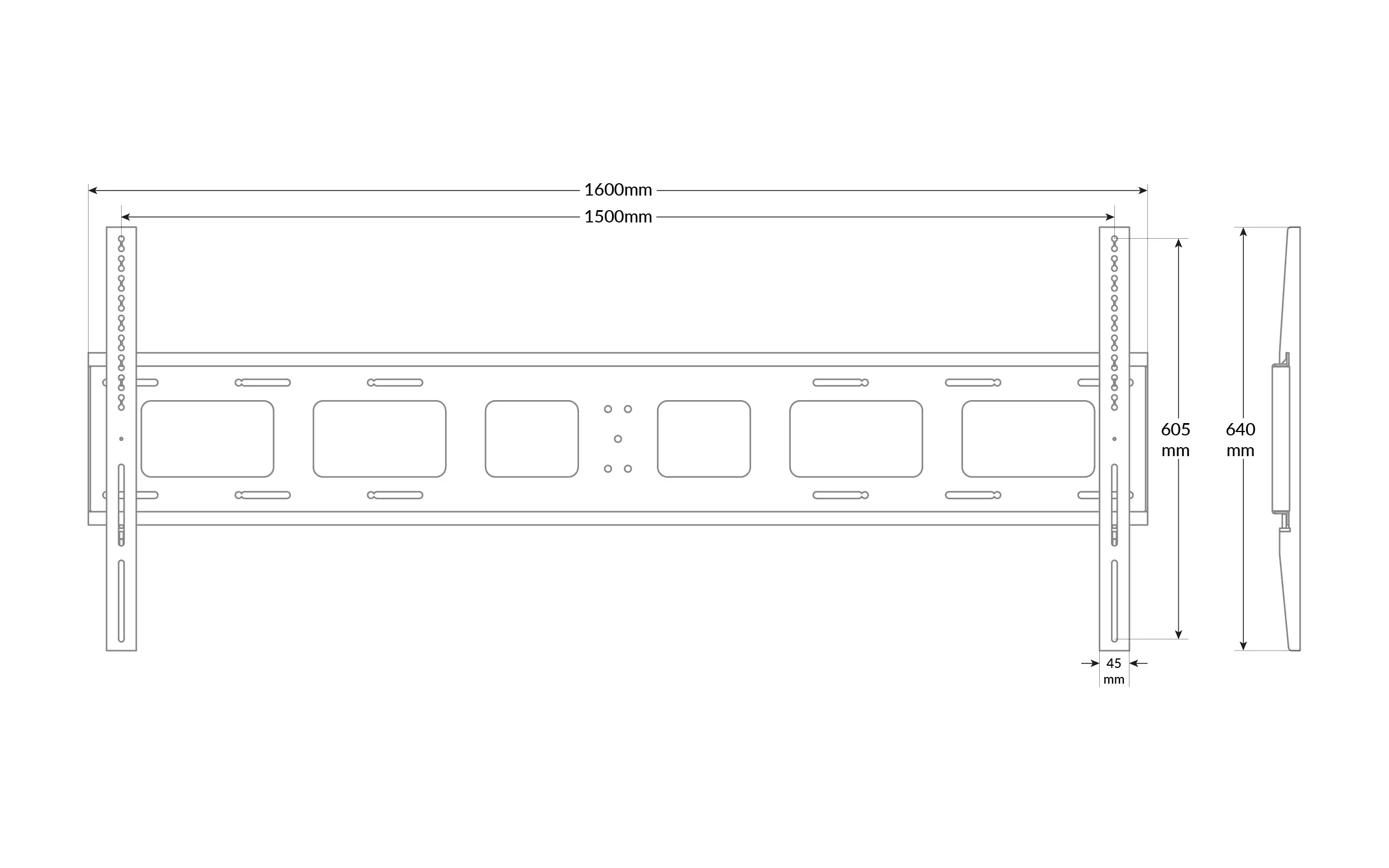

Product dimensionsW: 16000 mm D: 42 mm H: 640 mm (W:62.99″ D:1.65″ H:25.19″)
Product weight10.8 kg (2 3.80 lb)
Max. distance from mounting surface42 mm (1,65″)
Min. distance from mounting surface42 mm (1,65″)
Max. mounting pattern1500 mm x 600 mm
Min. mounting pattern100 mm x 100 mm

Logistics data

SAP IndexWUSC-XWM110
EAN code5902841139831
ColorBlack
Package dimensions1601 x 290 x 70 mm 63.03 x 11.41 x 2.75
Package weight11.5 kg (25.35 lb)
HS Code (Harmonized System )732690
HTS code (Harmonized Tariff Schedule )7326909890
Country of originPoland
