VWPOPS55-L - Ultra-thin pop-out video wall mount for 42

VWPOPS55-L – Ultra-thin pop-out video wall mount for 42″-55″ screens.

Possible landscape or portrait setup
The thickness of the mount is only 60 mm
+/-7.5 mm micro-adjustment ensures smooth alignment of screens
Levelling screws allow adjustment of screen height
Pop-out system for quick and easy access for installation and servicing purposes
10° tilt of the screen with the mount open increases access to the back of the screen from the bottom
Integrated locking mechanism prevents the screen from being slid out accidentally
Padlock protection against uncontrolled opening

Downloads

VWPOPS55-L_Product Card VWPOPS55-L_Instruction Manual

Description

The VWPOPS55-L makes video wall installation quick and easy. Independent 8-point adjustment allows precise alignment of screens without the use of tools. The VWPOPS55-L’s open design and special pull-out system, provide easy access to maintenance services. The mount is equipped with a lock against uncontrolled structure opening, ensuring comfort of use and safety. VWPOPS55-L will meet the expectations of the most demanding customers. It will be perfect for an office, a shopping centre or car dealership.

Additional information

Product specifications

Index	VWPOPS55-L
Category	Video wall mounting brackets
Product group	Video walls and menu board
Color	Black
Warranty	5-year limited
Minimum screen size	42″
Maximum screen size	55″
Maximum load	42 kg
Deviation	+10°
VESA mounts	100×100 to 600×400

Technical specifications

Product dimensions	W: 553mm D: 60 H: 500mm(W: 21.77″ D: 2.36″ H: 19.69″)
Product weight	8 kg (18 lb)
Max. distance from mounting surface	325 mm (12,80″)
Min. distance from mounting surface	60 mm (2,36″)
Max. mounting pattern	430 mm x 405 mm
Min. mounting pattern	90 mm x 83 mm

Logistics data

SAP Index	WUSC-VWPOPS55-L
EAN code	5902841134690
Color	Black
Package dimensions	750 x 550 x 70 mm(29.53 x 21.65 x 2.76″)
Package weight	10 kg (22 lb)
HS Code (Harmonized System )	732690
HTS code (Harmonized Tariff Schedule )	7326909890
Country of origin	Poland

EDBAK

Podmenu

Podmenu

EDBAK

Podmenu

Podmenu

VWPOPS55-L – Ultra-thin pop-out video wall mount for 42″-55″ screens.

Ask for product

Downloads

Description

Additional information

Product specifications

Technical specifications

Logistics data

See also...

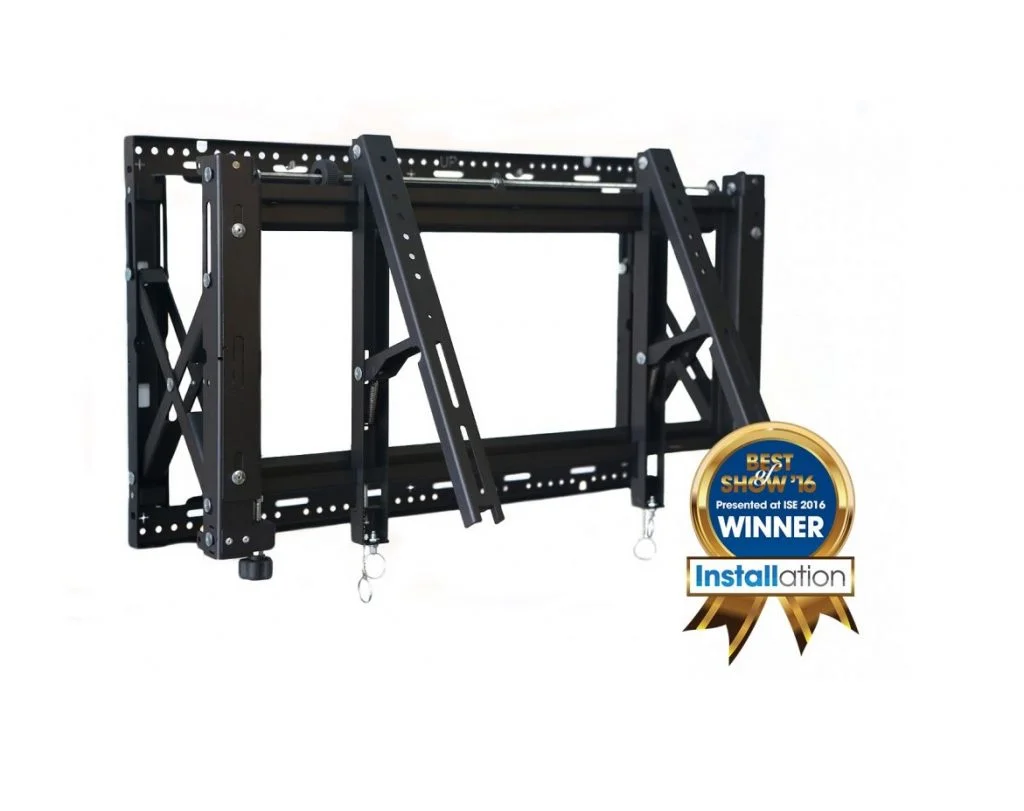

VWPOP65-L pop-out video wall mount 42 “-65”, horizontal

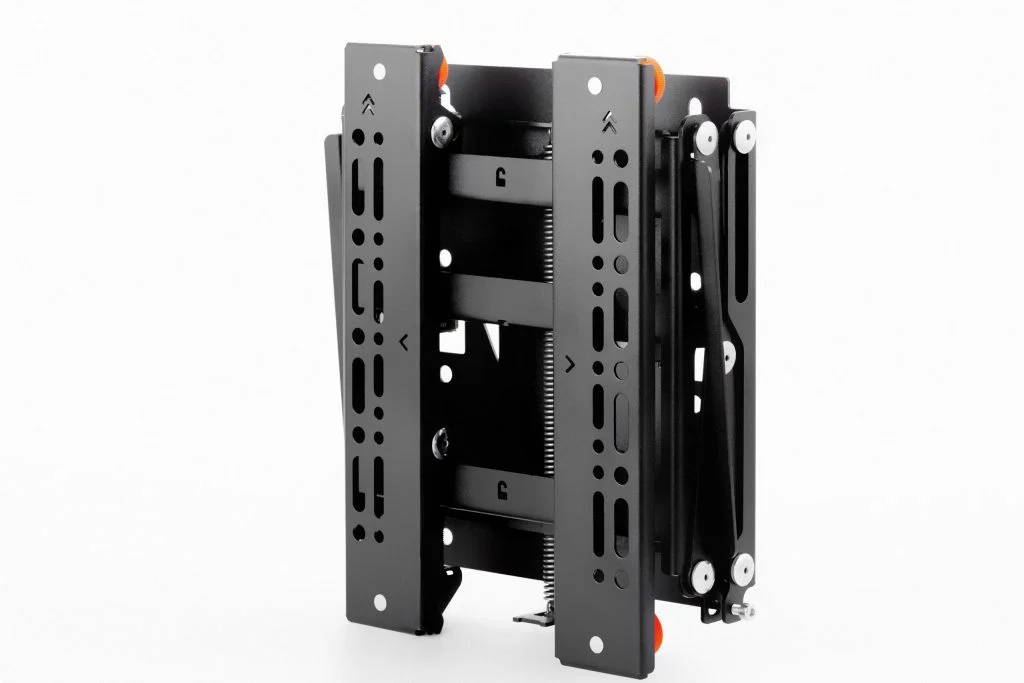

VWPOP40 – Pop-out video wall mount for 19″–43″ screens
