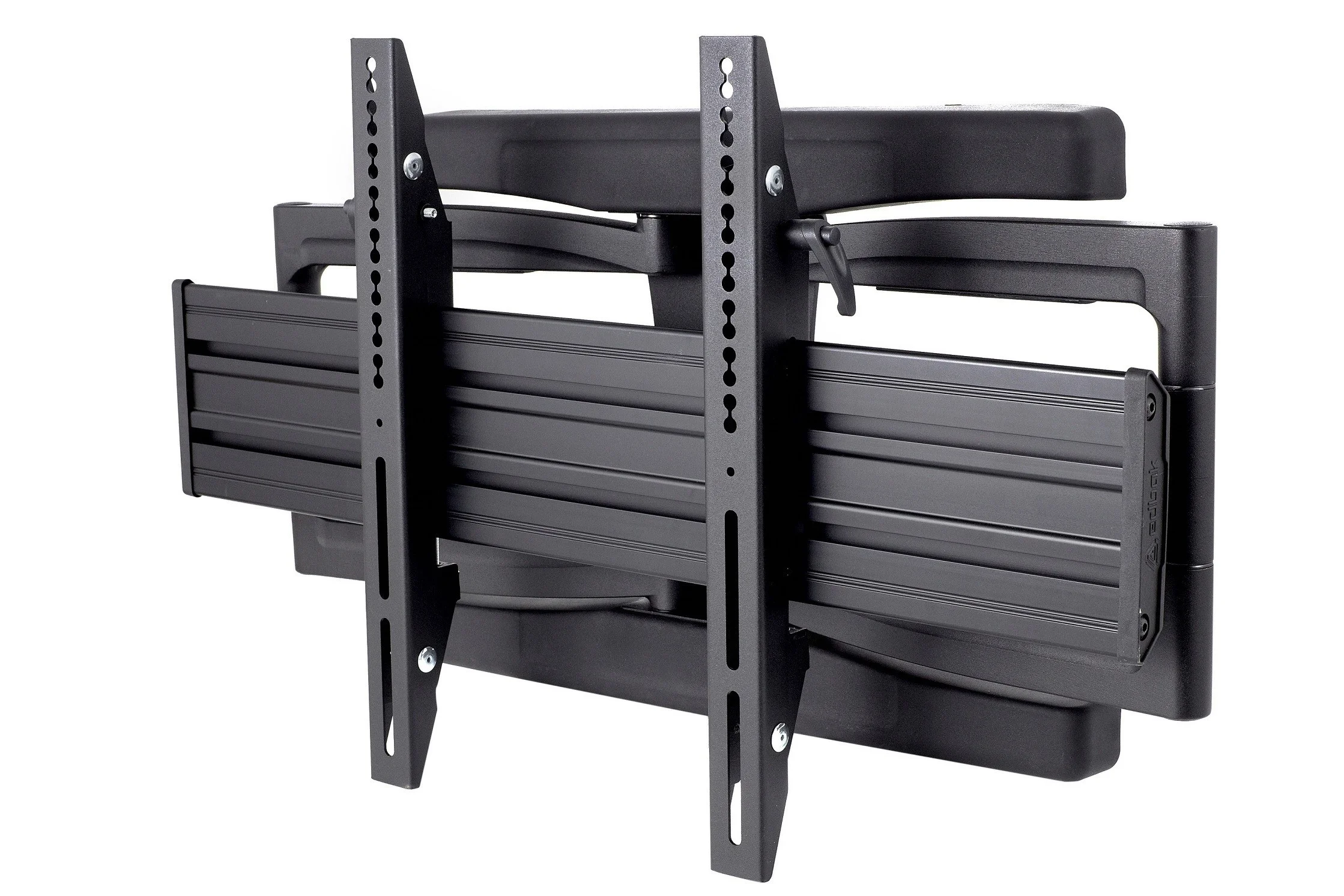

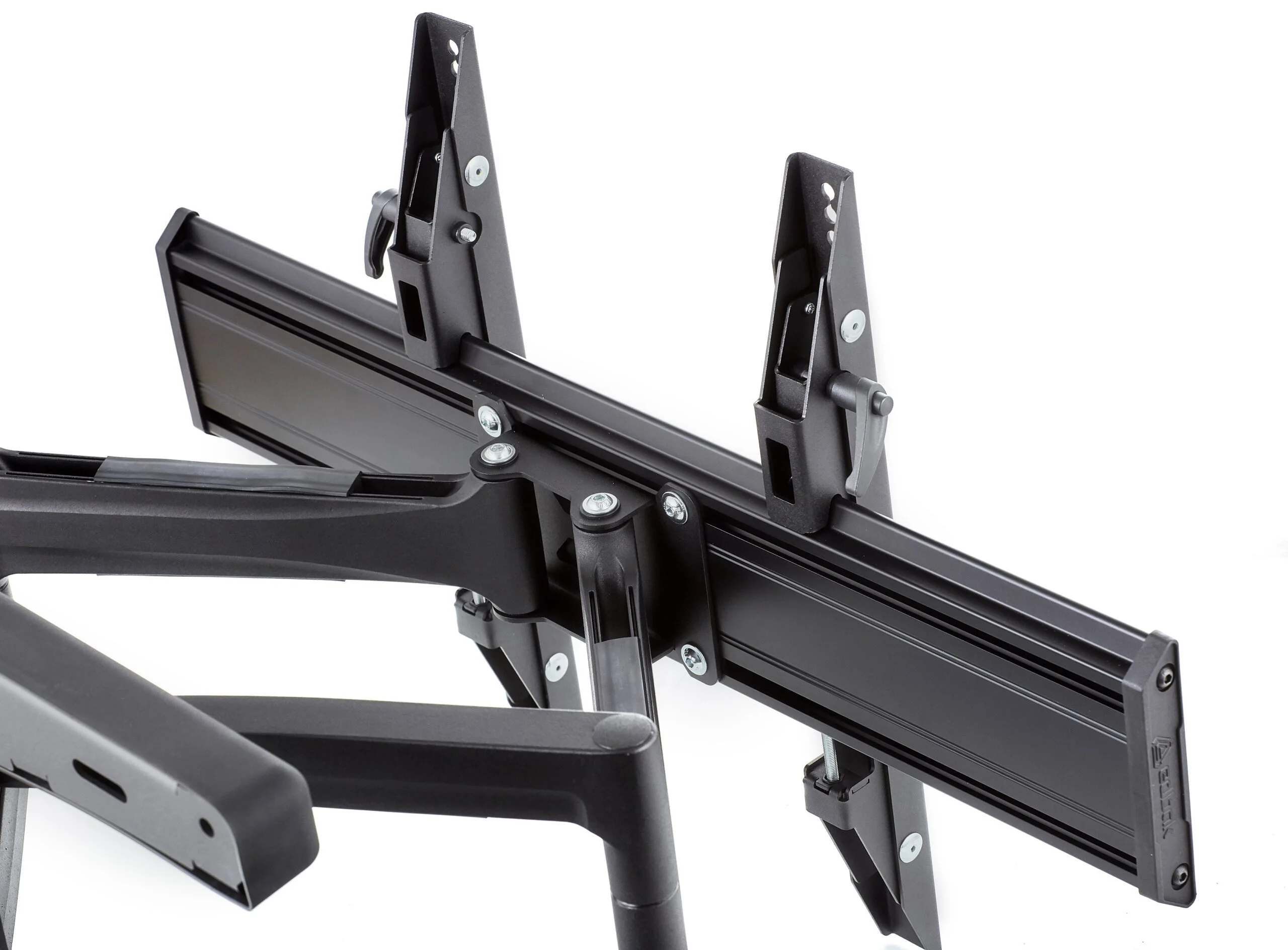

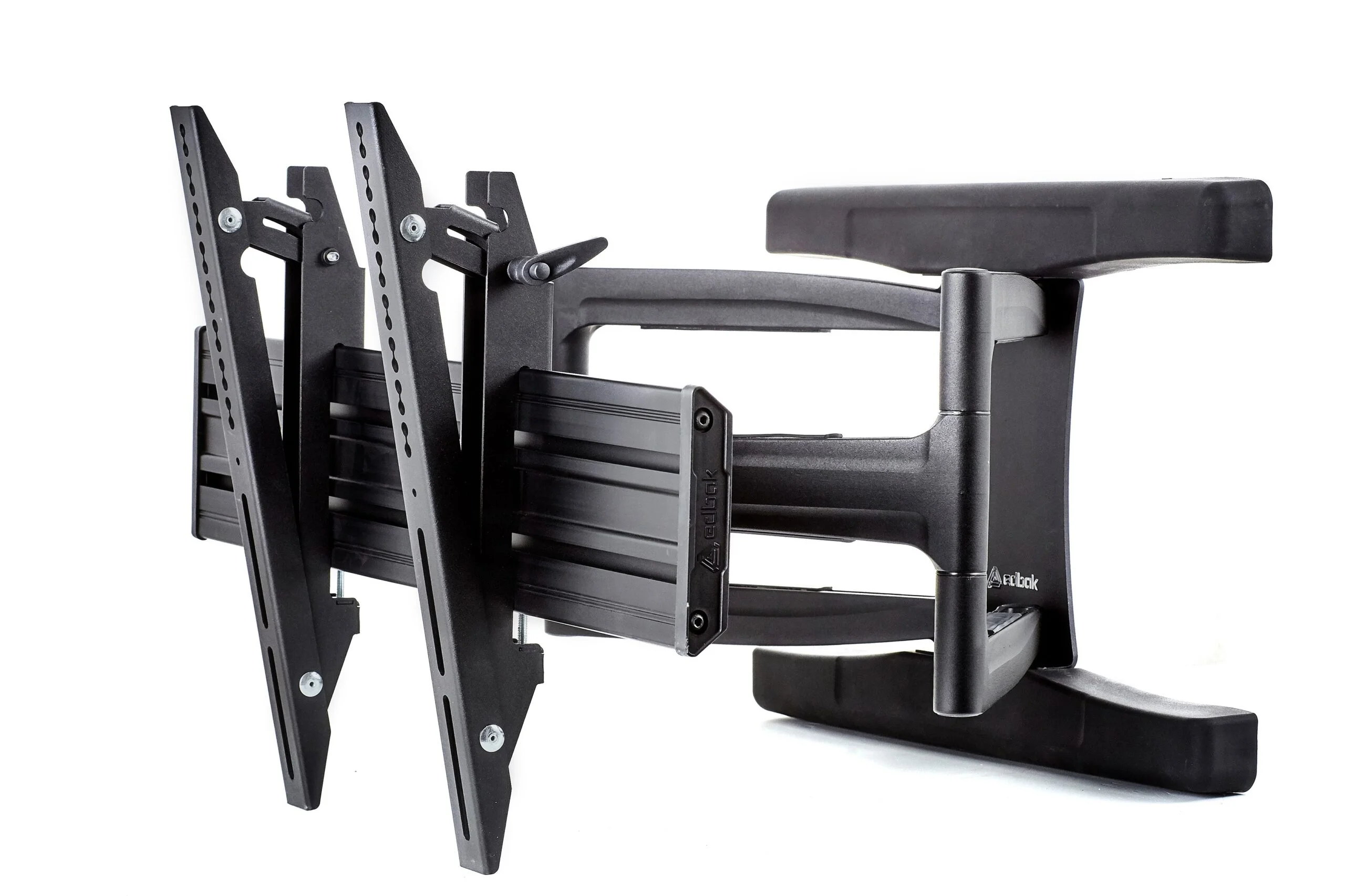

VSM654 Double swivel wall arm for 65 “-86” screens

  • Modern design and aesthetic finish of the wall mount
  • 90°/90° right-left screen rotation
  • Possibility of tilting the screen +11°
  • Durable aluminum structure

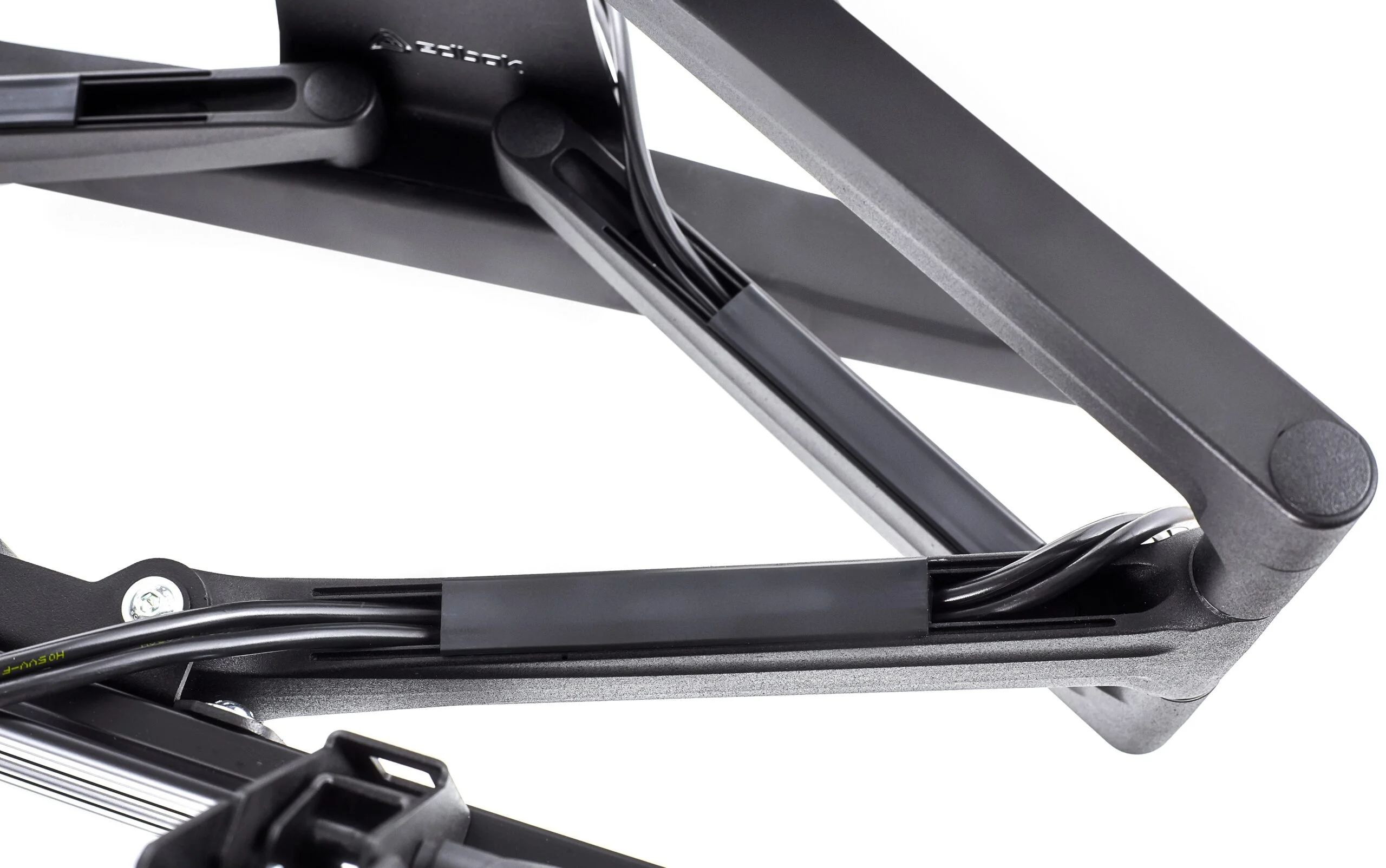

  • Cable routed inside the arm
  • VESA universal standard

Description

VSM654 – Double wall mount with arms for large screens 65″-86″

Fully adjustable | Tilt +11° | Load capacity up to 45 kg | VESA up to 600×400 mm

The VSM654 is a sturdy and modern double-arm wall mount, designed to securely mount large screens from 65 to 86 inches. With its aluminum construction and integrated cable routing inside the arms, the mount offers not only functionality, but also a high level of aesthetics, ideal for modern interiors.

The ability to swivel 90° to the left and right and the ability to tilt the screen by +11° make the mount ideal for spaces where the screen needs to be visible from different points – such as living rooms, conference rooms, showrooms and hotels.

Additional information

Product specifications

IndexVSM654
CategoryWall mounts on arm
Product groupMounts for screens / monitors
ColorBlack
Warranty5-year limited
Number of screens1
Minimum screen size65″
Maximum screen size86″
Forward tilting
Tilt+11°
Arm rotation
Rotation left right90/90°
Maximum load45 kg
VESA mounts100×100 to 600×400

Technical specifications

Product dimensionsW: 720 mm D: 94 mm H: 455 mm(W: 28.35″ D: 3.70″ H: 17.91″)
Product weight15.6 kg 34 lb
Max. distance from mounting surface700 mm (27,56″)
Min. distance from mounting surface100 mm (3,94″)
Max. mounting pattern650 mm x 415 mm
Min. mounting pattern50 mm x 50 mm

Logistics data

SAP IndexWUSC-VSM654
EAN code5902841111899
ColorBlack
Package dimensions770 mm x 390 mm x 90 mm(30.31″ x 15.35″ x 3.54″)
Package weight16.5 kg (36 lb)
HS Code (Harmonized System )732690
HTS code (Harmonized Tariff Schedule )7326909890
Country of originPoland
