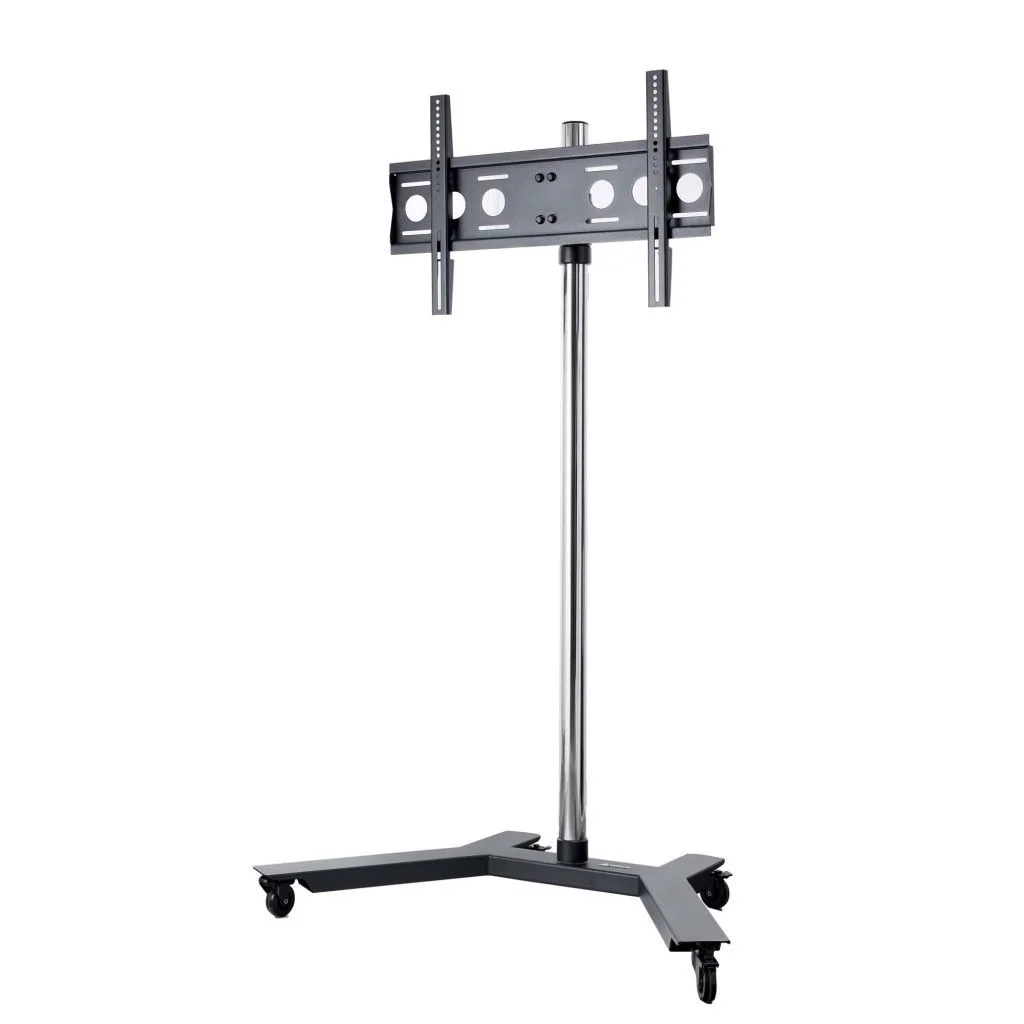

TR51 Screen Cart 37 “-60” PRODUCT DISCONTINUED → Check out TR5E

Fully adjustable height
Screen tilt adjustment
Simple and quick installation
Cable management system to hide cables
Includes 4 reinforced braked casters

Downloads

TR51 Product Card TR51 Technical Drawings TR51 Installation Manual

This universal video conference trolley is designed for conference rooms, offices, educational facilities and exhibition fairs. TR51 is equipped with intuitive adjustment of screen height and a system that protects the monitor against falling. Seamless adjustment of screen tilt allows you to adjust the image to the needs of the audience. Cable management system allows the cables to be hidden, thus creating an aesthetic and smart installation.

Additional information

Product specifications

Index	TR51
Category	Screen carts, Universal line
Product group	Carts and stands
Color	Black
Warranty	5-year limited
Number of screens	1
Minimum screen size	37″
Maximum screen size	60″
Maximum load	80 kg
Tilt	-12°/+6°
Height adjustment	YES
VESA mounts	100×100 to 600×400

Technical specifications

Product dimensions	W: 1142 mm D: 695 mm H: 1771 mm(W: 44.96″ D: 27.36″ H: 69.72″)
Product weight	24 kg (53 lb)
Max. distance from floor to screen centre	1680 mm (66,14″)
Min. distance from floor to screen centre	365 mm (14,37″)
Max. mounting pattern	740 mm x 460 mm
Min. mounting pattern	50 mm x 95 mm

Logistics data

Index	WWTR-TR51c-B
EAN code	5908252965748
Color	Black
Package Dimensions	1(2) 1200 x 800 x 120 mm(47.24 “x 31.50” x 4.72 “)2(2) 1750 x 220 x 150 mm(68.90” x 8.66 “x 5.91”)
Package weight	1(2) 21.5 kg (47 lb)2(2) 6.5 kg (14 lb)
HS Code (Harmonized System)	732690
HTS (Harmonized Tariff Schedule) code	7326909890
Country of origin	Poland
