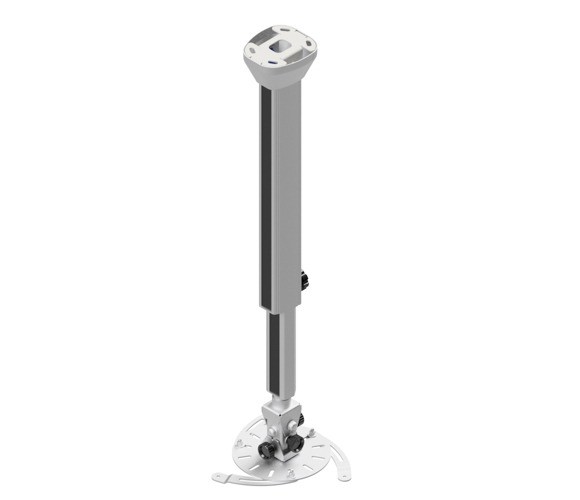

PMV200 Universal Projector Ceiling Mount

  • Modern design with high-end finish
  • Durable aluminum construction with semi-matte powder-coated or anodized finish
  • The set includes a ceiling bezel that covers the mount
  • Micro adjustment mechanism ensures precise installation
  • Universal mount for all projectors, suitable for multiple mounting points
  • Adjusting the distance of the projector from the ceiling from 650 mm to 1000 mm
  • Space to organize cables inside the pipe
  • Maximum load 30 kg
  • 50° horizontal adjustment

Description

PMV200 – universal ceiling mount for projector

PMV200 is an advanced ceiling mount, designed for professional projector installations in office, educational, conference and home theater spaces. It combines modern design, durability and functionality that will meet the expectations of the most demanding users.

The handle’s construction is made of durable aluminum with an elegant semi-matte coating – powder-coated or anodized. This guarantees not only high resistance to wear and tear, but also an aesthetically pleasing fit to the interior. A ceiling bezel is included to cover the mounting elements and improve the appearance of the entire installation.

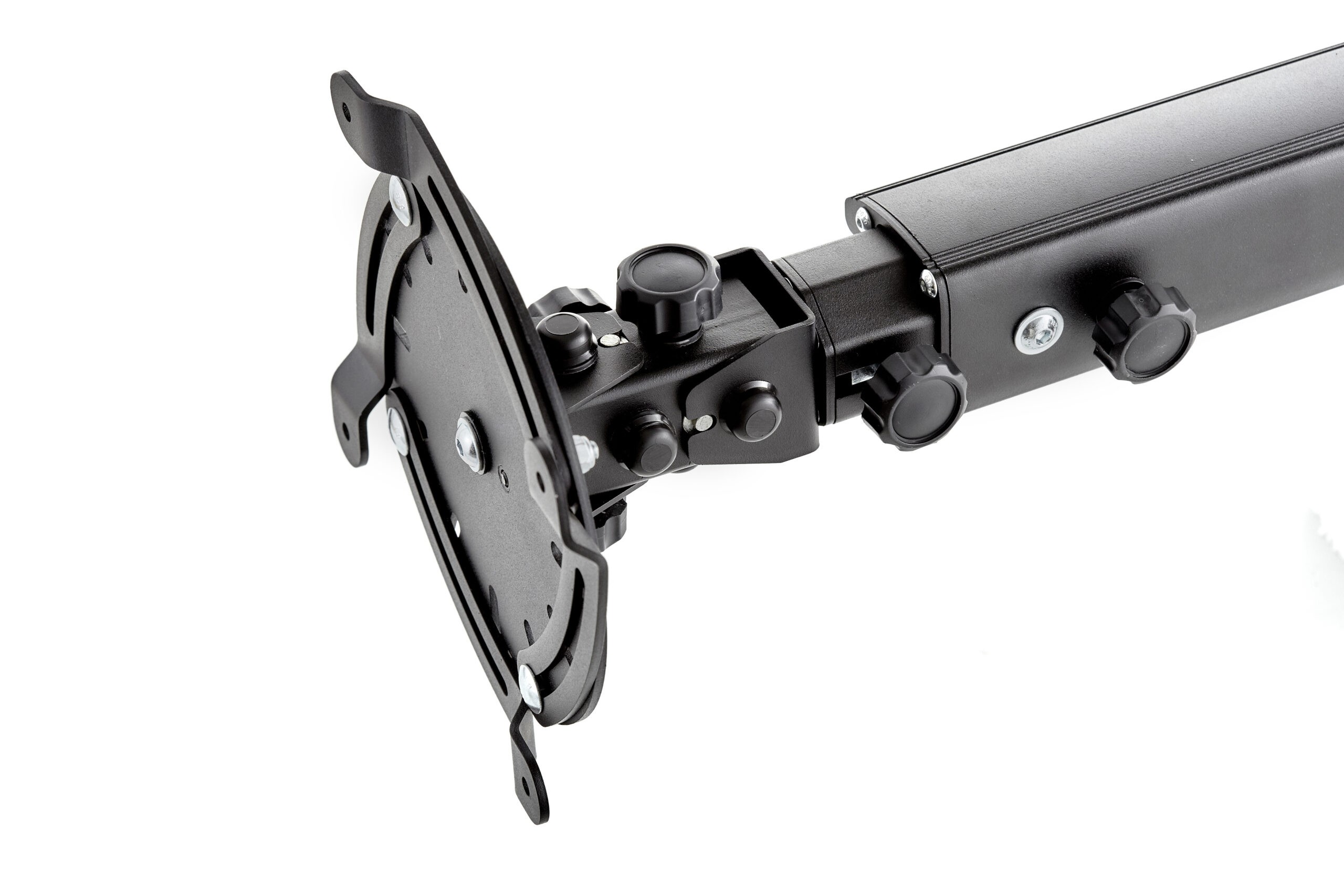

Thanks to the micro-adjustment mechanism, the positioning of the projector is extremely precise and convenient – even with small adjustments of the tilt angle. Adjustable height from 650 to 1000 mm and up to 50° horizontal rotation allow perfect positioning of the device in relation to the projection surface.

An additional advantage is the integrated cable routing channel inside the tube, which allows you to aesthetically hide cabling and keep things neat and tidy. The universal mount fits most projectors available on the market, regardless of the mounting hole spacing.

Additional information

Product specifications

IndexPMV200
CategoryProjector mounts
Product groupProjector ceiling mounts
ColorBlack
Warranty5-year limited
Maximum load30 kg
Tilt-7,5°/+7,5°
Height adjustmentYes

Technical specifications

Product dimensionsW: 180 mm D: 180 mm H: 650 mm(W: 7.08″ D: 7.08″ H: 25.59″)
Product weight5 kg (11.02 lb)
Maximum distance from the mounting surface1000 mm (39.37″)
Minimum distance from the mounting surface650 mm (22.59″)
Max. assembly pattern420 mm (16.54″)
Min. assembly pattern50 mm (1.96″)

Logistics data

IndexWUSU-PMV200
EAN code5902841112124
ColorBlack
Package dimensions660 mm x 210 mm x 160 mm (25.98″ x 8.26″ x 6.29″)
Package weight4.8 kg (10.58 lb)
HS Code (Harmonized System)732690
HTS (Harmonized Tariff Schedule) code7326909890
Country of originPoland
