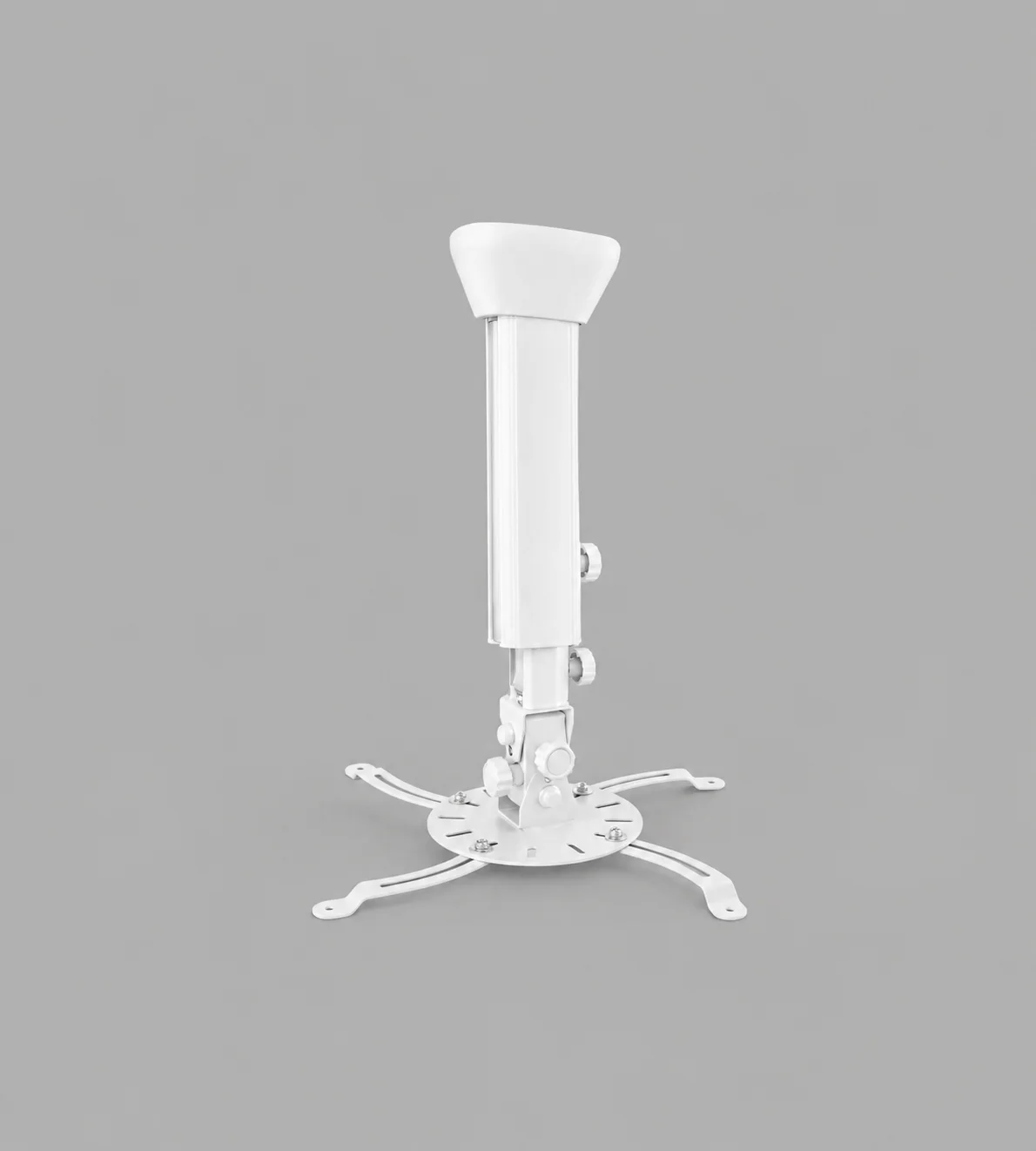

PMV100W Universal Projector Ceiling White Mount

  • Modern design with high-end finish
  • Durable aluminum construction with semi-matte powder-coated or anodized finish
  • The set includes a ceiling bezel that covers the mount
  • Micro-adjustment mechanism ensures precise installation
  • Universal mount for all projectors, suitable for multiple mounting points
  • Adjusting the distance of the projector from the ceiling from 475 mm to 650 mm
  • Space to organize cables inside the pipe
  • 50° horizontal adjustment
  • Maximum load 30 kg

Description

PMV100 is a professional projector ceiling mount, designed for demanding users looking for an aesthetically pleasing, durable and precise solution for mounting projection equipment. Thanks to its modern design, high-quality materials and functional details, it will work well in office, conference and educational spaces, as well as in home theaters.

The mount features durable aluminum construction with a semi-matte powder-coated or anodized surface for damage resistance and an elegant appearance. The included ceiling bezel helps cover the mount and maintain the aesthetic integrity of the entire installation.

Thanks to a micro-adjustment mechanism, mounting the projector is quick, precise and requires no disassembly for minor alignment adjustments. Horizontal adjustment of as much as 50° allows you to accurately direct the image, and a height range of 475 to 650 mm makes it easy to adjust the distance of the projector from the ceiling.

Space is provided inside the tube to hide cables, allowing power and signal cables to be routed neatly and safely.

Additional information

Minimalny odstęp od sufitu

465 mm

Maksymalny odstęp od sufitu

650 mm

Maksymalne obciążenie

30 kg

Product specifications

IndexPMV100W
CategoryProjector mounts
Product groupProjector ceiling mounts
ColorWhite
Warranty5-year limited
Maximum load30 kg
Tilt-7,5°/+7,5°
Height adjustmentYes


Technical specifications

Product dimensionsW: 180 mm D: 180 mm H: 475 mm(W: 7.08″ D: 7.08″ H: 18.70″)
Product weight3.5 kg (7.71 lb)
Maximum distance from the mounting surface650 mm (22.59″)
Minimum distance from the mounting surface475 mm (18.70″)
Max. assembly pattern420 mm (16.54″)
Min. assembly pattern50 mm (1.96″)

Logistics data

SAP IndexWUSU-PMV100
EAN code5902841112117
ColorBlack
Package dimensionsW: 660 mm D: 210 mm H: 160 mm(W: 25.98″ D: 8.26″ H: 6.29″)
Package weight4.1 kg (9.03 lb)
HS Code (Harmonized System )732690
HTS code (Harmonized Tariff Schedule )7326909890
Country of originPoland
