GD03 Adjustable wall mount for 10 “-29” screens

  • Designed for 10”–29” screens
  • Supports up to 10 kg
  • 360° rotation for flexible orientation
  • Flat wall mount, only 25 mm from wall
  • Compatible with VESA 75×75 to 100×100
  • Easy installation by one person

Description

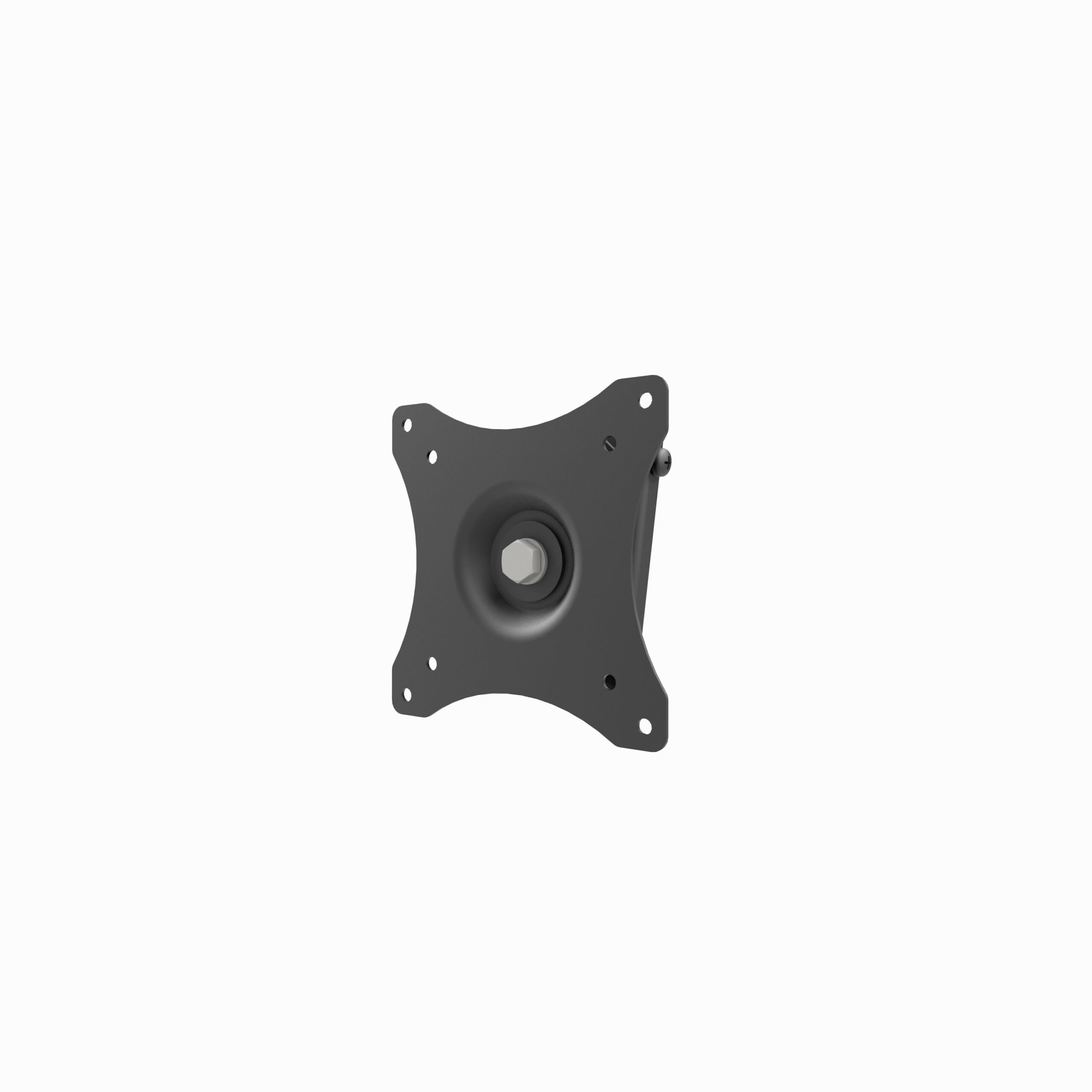

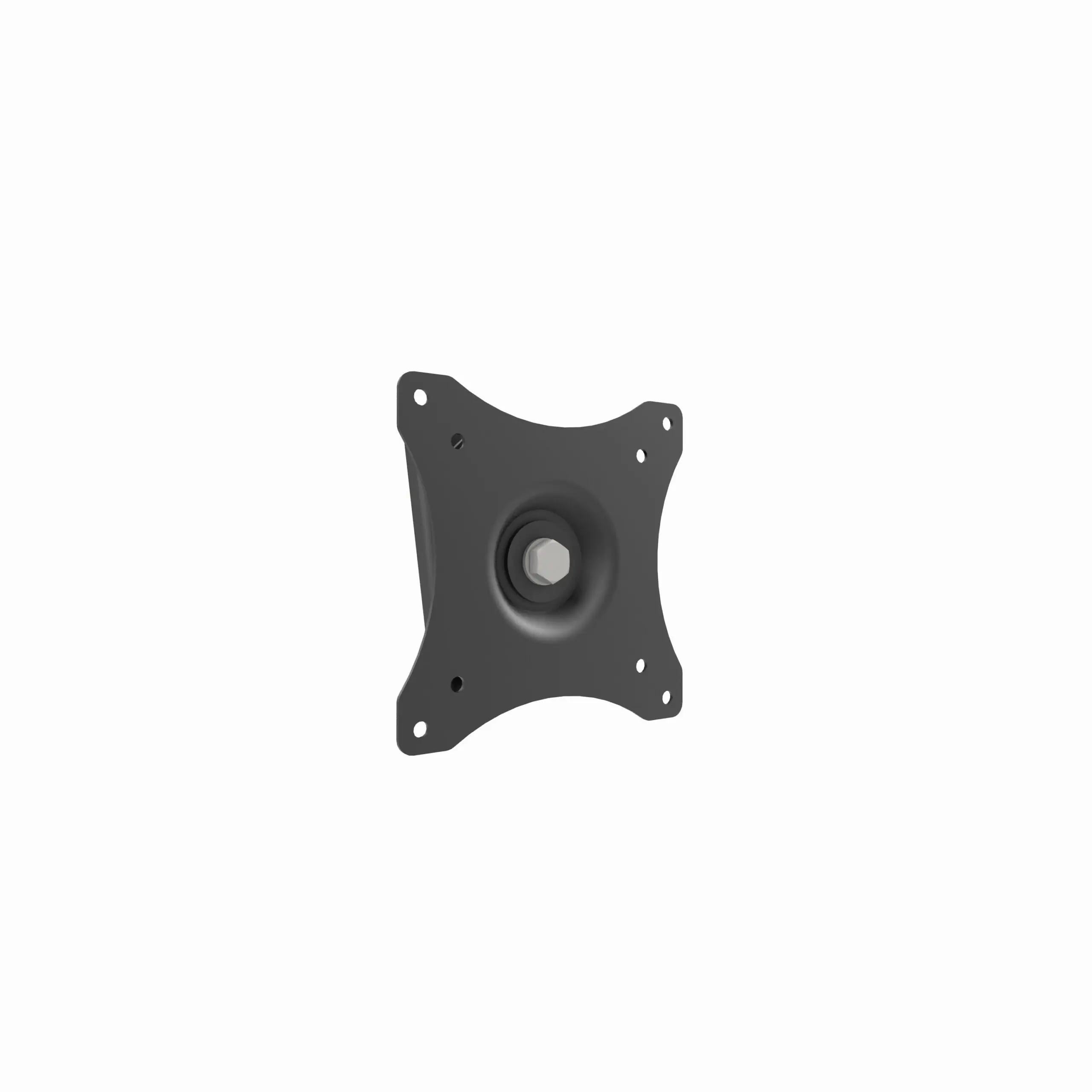

GD03 – Compact Pivoting Wall Mount for 10″–29” Screens | EDBAK

The EDBAK GD03 is a compact and versatile wall mount bracket for small-format screens from 10” to 29”. Ideal for tight spaces like hotel rooms, waiting areas, or private workspaces, the GD03 offers full 360° screen rotation, allowing both portrait and landscape orientation.

With a minimum wall distance of just 25 mm, this mount ensures a low-profile, modern appearance. The VESA compatibility (75×75 to 100×100) and quick-install design make it a top choice for professional and home applications alike.

A built-in locking screw prevents unauthorised screen removal, ensuring safety in public environments. Whether you’re mounting a touchscreen, information panel, or small TV, the GD03 delivers maximum functionality in minimal space.

Additional information

Product specifications

IndexGD03
CategoryFixed wall brackets
Product groupMounts for screens / monitors
ColorBlack
Warranty5-year limited
Number of screens1
Minimum screen size10″
Maximum screen size29″
Maximum load10 kg
VESA mounts75×75 to 100×100

Technical specifications

Product dimensionsW: 115 mm D: 25 mm H: 115 mm (W: 4.53″ D: 0.98″ H: 4.53″)
Product weight0.5 kg (1 lb)
Max. distance from mounting surface25 mm (0,98″)
Min. distance from mounting surface25 mm (0,98″)
Max. mounting pattern100 mm x 100 mm
Min. mounting pattern75 mm x 75 mm

Logistics data

IndexWUSC-GD03c-B
EAN code5902841103467
Colorblack
Package dimensions140 mm x 140 mm x 50 mm (5.51″ x 5.51″ x 1.97″)
Package weight0.52 kg (1 lb)
HS Code (Harmonized System )732690
HTS code (Harmonized Tariff Schedule )7326909890
Country of originPoland
