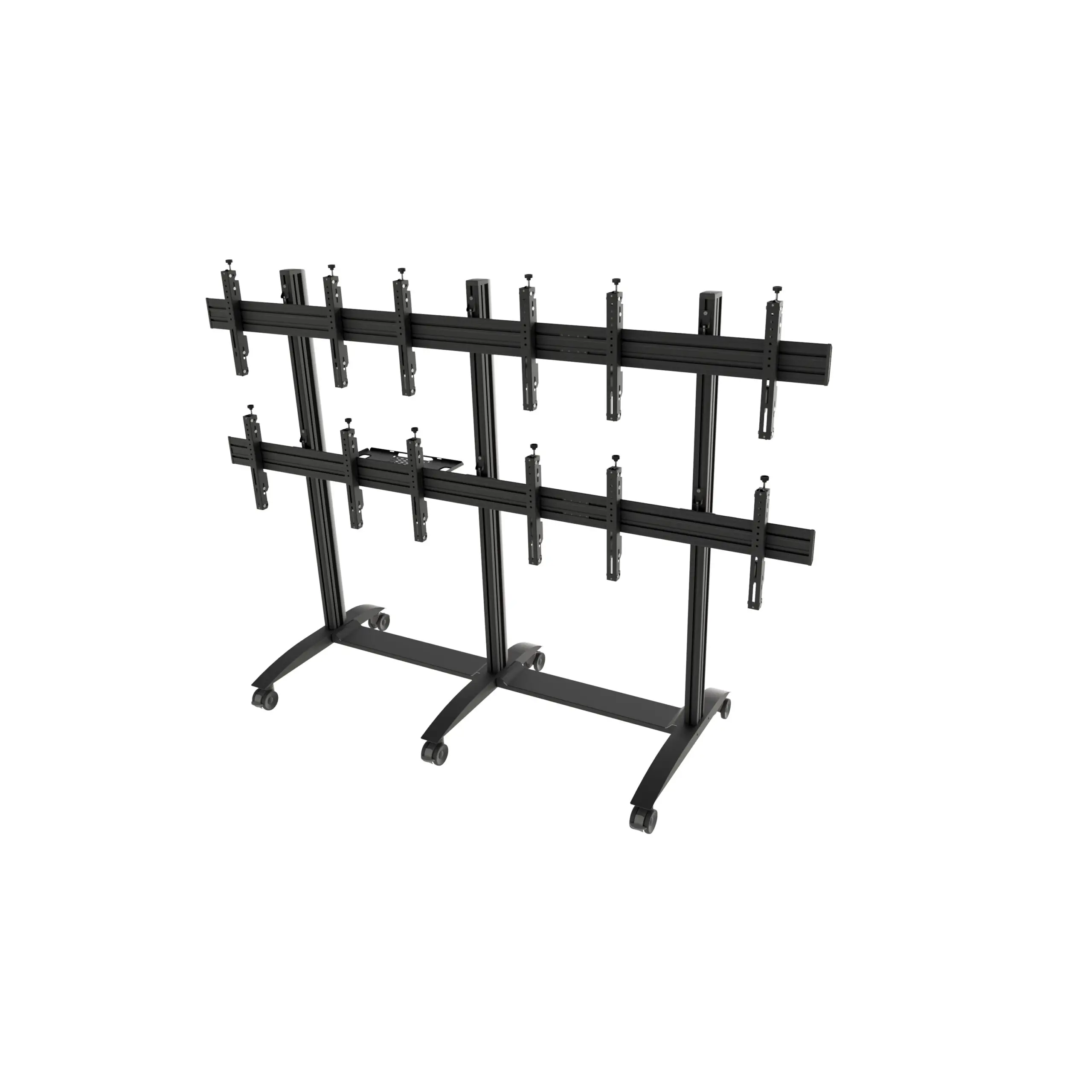

VWTA3257-L – Mobile modular video wall structure, 3×2 configuration, for 50″–57″ screens, landscape orientation

  • High-end quality and aesthetics
  • Durable aluminium design
  • Up to 6 x 50″-57″ screens
  • Independent 8-point micro-adjustment ensures perfect alignment of screens without the use of tools
  • Screen protected against being slid out accidentally
  • Integrated cable management system for smart installation
  • Computer shelf and mount featuring VESA 100×100 as standard
  • Braked castors
  • Screws protecting against accidental or unauthorised removal of the screen
  • Possibility of mounting other accessories (e.g. shelves) on aluminium profile guides

Opis

With its modular design, VWTA3257-L allows the installation of six 50″-57″ screens in 3×2 landscape orientation. VWTA3247-L is characterised by high-end quality and aesthetics. Durable aluminium design and braked castors ensure high mobility, and as such VWTA3257-L enjoys great interest among exhibitors during trade fairs and conferences. The mounted accessories (computer shelf) and the mount with VESA 100×100 make the VWTA3257-L mobile structure suitable for places where there is a need for dynamic and effective communication with the audience, displaying and instantly updating information on the monitor wall.

Additional information

Technical specifications

Product dimensions: W: 3320 mm D: 964 mm H: 2017 mm (W: 130,71″ D: 37,95″ H: 79,41″)
Product weight: 108 kg (238 lb)
Max. distance from mounting surface 1877 mm (73,90″)
Min. distance from mounting surface 330 mm (12,99″)
Max. mounting pattern 600 mm x 410 mm
Min. mounting pattern 50 mm x 50 mm

Logistics data

Please note – this product is packed in several cardboard packages

SAP Code: WWTR-VWTA3257-L
EAN Code 5902841112513
Color Black
Package dimensions:
Waga opakowania
HS Code (Harmonized System ) 732690
HTS code (Harmonized Tariff Schedule ) 7326909890
Country of origin Poland
