Professional stability and precision for modern video wall installations

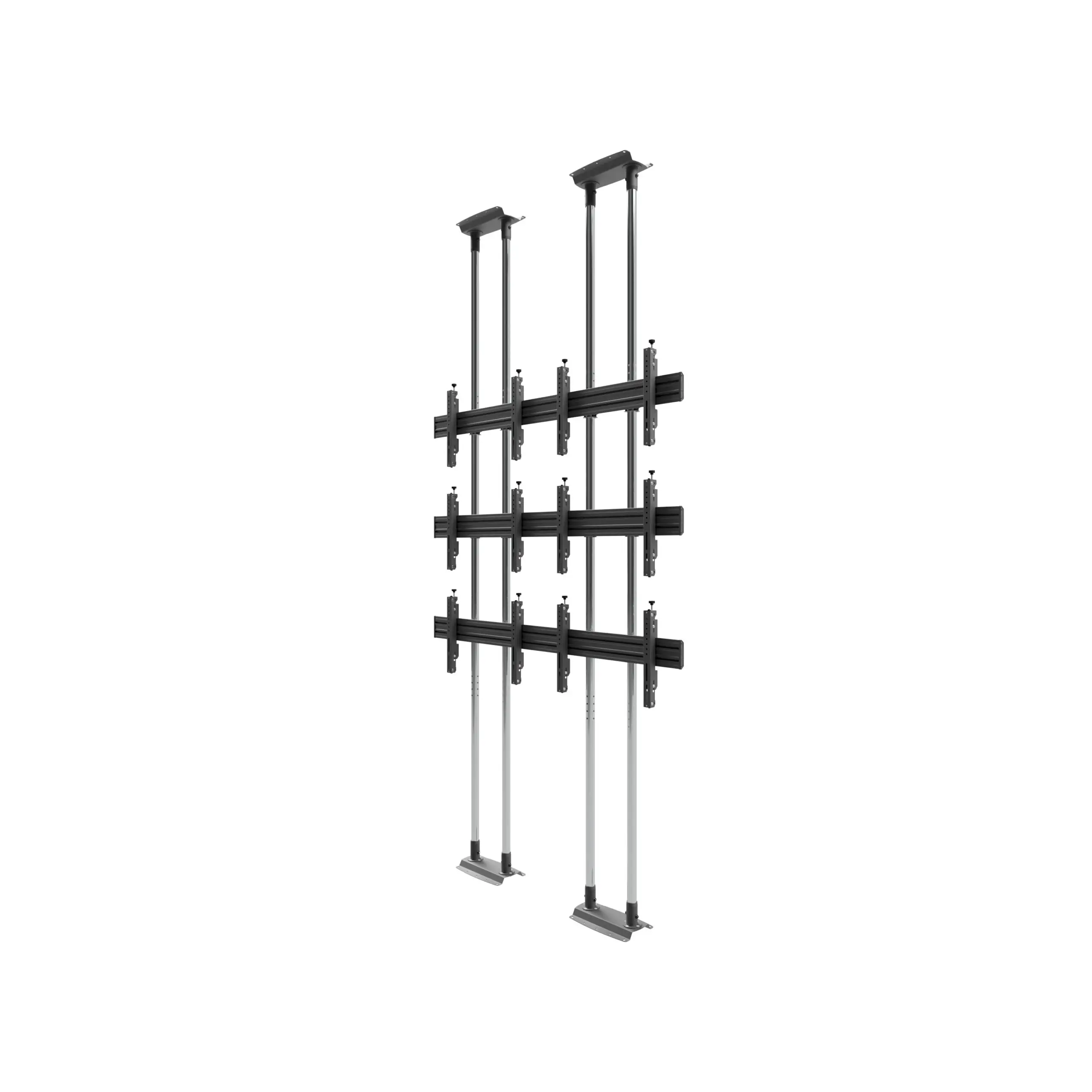

The VWFCA2347-L structure is a reliable solution for building sleek and secure 2×3 video walls, allowing the installation of six 42″–49″ displays.
Its floor-to-ceiling mounting system ensures exceptional stability, while the applied technical solutions enable precise and fast screen alignment.
Aluminum support rails, independent micro-adjustment, and an integrated cable management system make installation fast, clean, and fully professional.
🔷 Durable and stable structure – robust design resistant to heavy-duty use
🔷 Aluminum support rails – provide a lightweight yet highly durable structure
🔷 2×3 modular layout – supports mounting of six 42″–49″ screens in landscape orientation
🔷 8-point micro-adjustment – precise screen alignment without the need for tools
🔷 Screen lock mechanism – enhances installation safety by preventing unintentional screen removal
🔷 Integrated cable organization system – allows for aesthetic and orderly cable management
🔷 Security screws – additional protection against accidental or unauthorized removal of screens
The VWFCA2347-L model combines modern design, functionality, and durability – ideal for demanding multimedia environments and professional AV installations.
| Product dimensions | W: 264 mm D: 1960 mm H: 4000 mm (W: 10,39″ D: 77,17″ H: 157,48″) |
| Product weight | 100 kg (220 lb) |
| Max. distance from mounting surface | 3700 mm (145,67″) |
| Min. distance from mounting surface | 300 mm (11,81″) |
| Max. mounting pattern | 600 mm x 410,5 mm |
| Min. mounting pattern | 55 mm x 50 mm |
| SAP Product code: | WUSU-VWFCA2347-L |
| Kod EAN | 5902841112728 |
| Color | Black |
| Package Dimensions | |
| Package Weight | |
| HS Code (Harmonized System ) | 732690 |
| HTS code (Harmonized Tariff Schedule ) | 7326909890 |
| Country of origin | Poland |
