The EDBAK TWB1 is a professional-grade flat TV wall mount designed for large-format screens from 50 to 85 inches. Made from reinforced metal components, it supports screens up to 80 kg, making it the ideal choice for offices, conference rooms, and public displays.
With VESA compatibility from 100×100 to 800×400, TWB1 ensures broad monitor support and precise lateral adjustment post-installation. Its robust, secure construction protects your screen from falling and allows safe wall mounting on brick, concrete, plaster or wood.
Engineered for quick installation and long-term reliability, TWB1 is the go-to solution for professionals who demand both performance and aesthetics.
| Index | TWB1 |
| Category | Fixed wall brackets |
| Product group | Mounts for screens / monitors |
| Color | Black |
| Warranty | 5-year limited |
| Number of screens | 1 |
| Minimum screen size | 50″ |
| Maximum screen size | 86″ |
| Maximum load | 80 kg |
| VESA mounts | 100×100 to 800×400 |

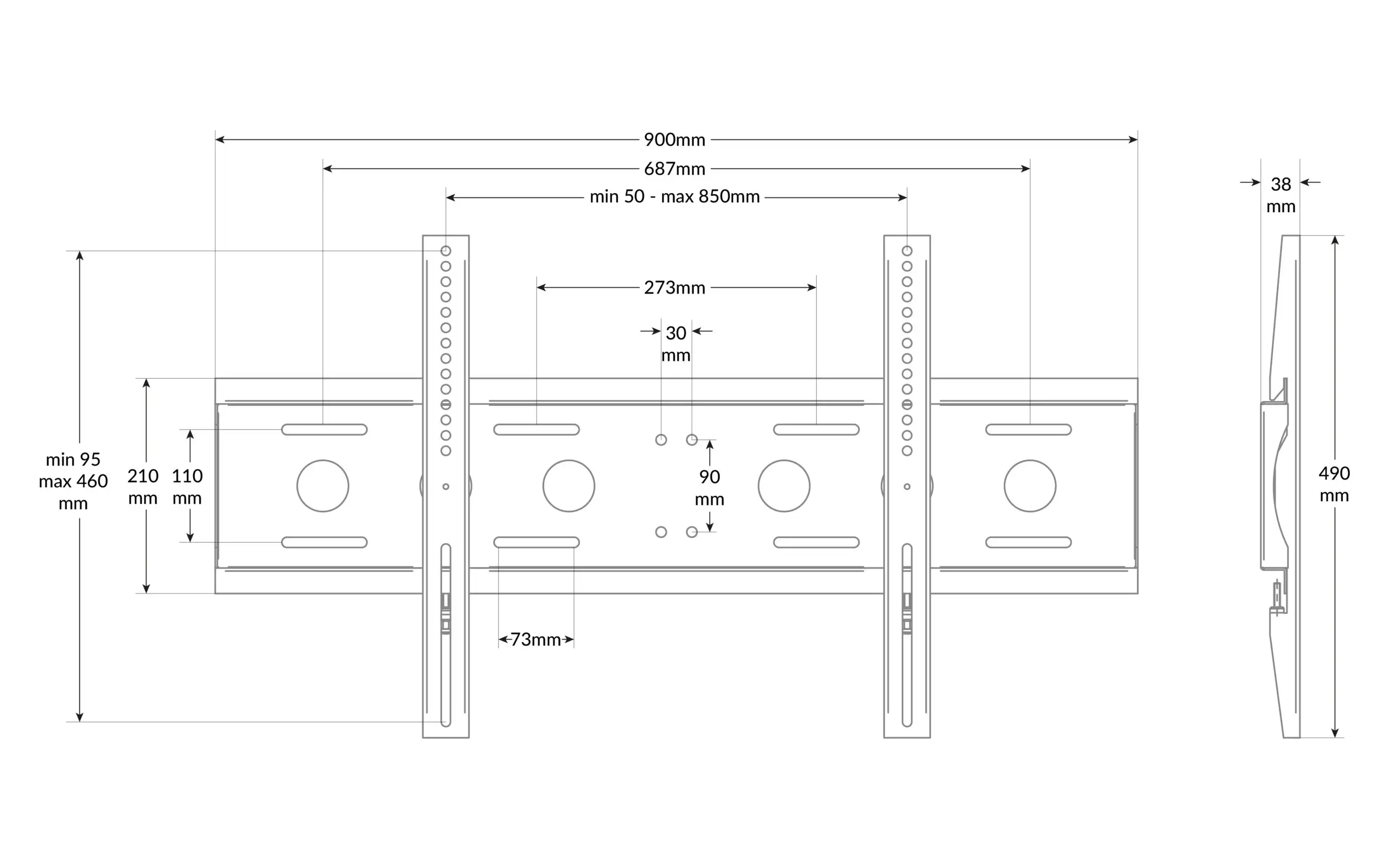

| Product dimensions | W: 900 mm, D: 38 mm, H: 490 mm (35.43″ x 1.50″ x 19.29″) |
| Product weight | 4.6 kg (10 lb) |
| Max. distance from mounting surface | 38 mm (1,50″) |
| Min. distance from mounting surface | 38 mm (1,50″) |
| Max. mounting pattern | 850 mm x 460 mm |
| Min. mounting pattern | 50 mm x 95 mm |
| Index | WUSC-TWB1c-B |
| EAN code | 5908252960859 |
| Color | black |
| Package dimensions | 930 mm x 220 mm x 40 mm (36.61″ x 8.66″ x 1.57″) |
| Package weight | 5.5 kg (12 lb) |
| HS Code (Harmonized System ) | 732690 |
| HTS code (Harmonized Tariff Schedule ) | 7326909890 |
| Country of origin | Poland |
