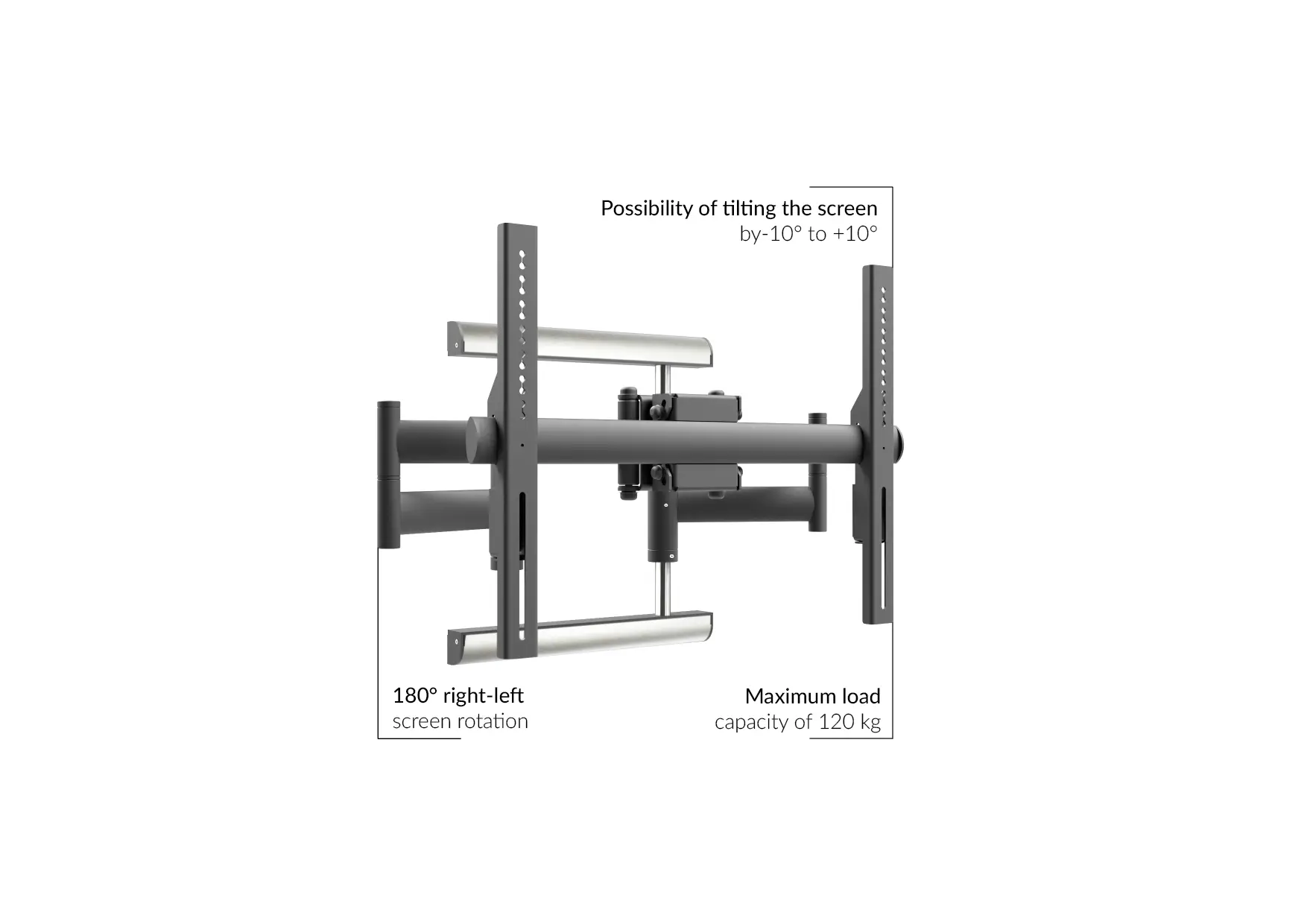

Rotating wall arm RMSA1, is dedicated to large and heavy screens with diagonal from 42 “up to 98” and maximum load up to 120 kg. Three rotation axes allow any adjustment of the screen position landscape. The possibility of tilting the screen by -10°/+10° and 180° right-left screen rotation allow the screen position to be adjusted to suit to the user’s needs and improve the comfort of use.

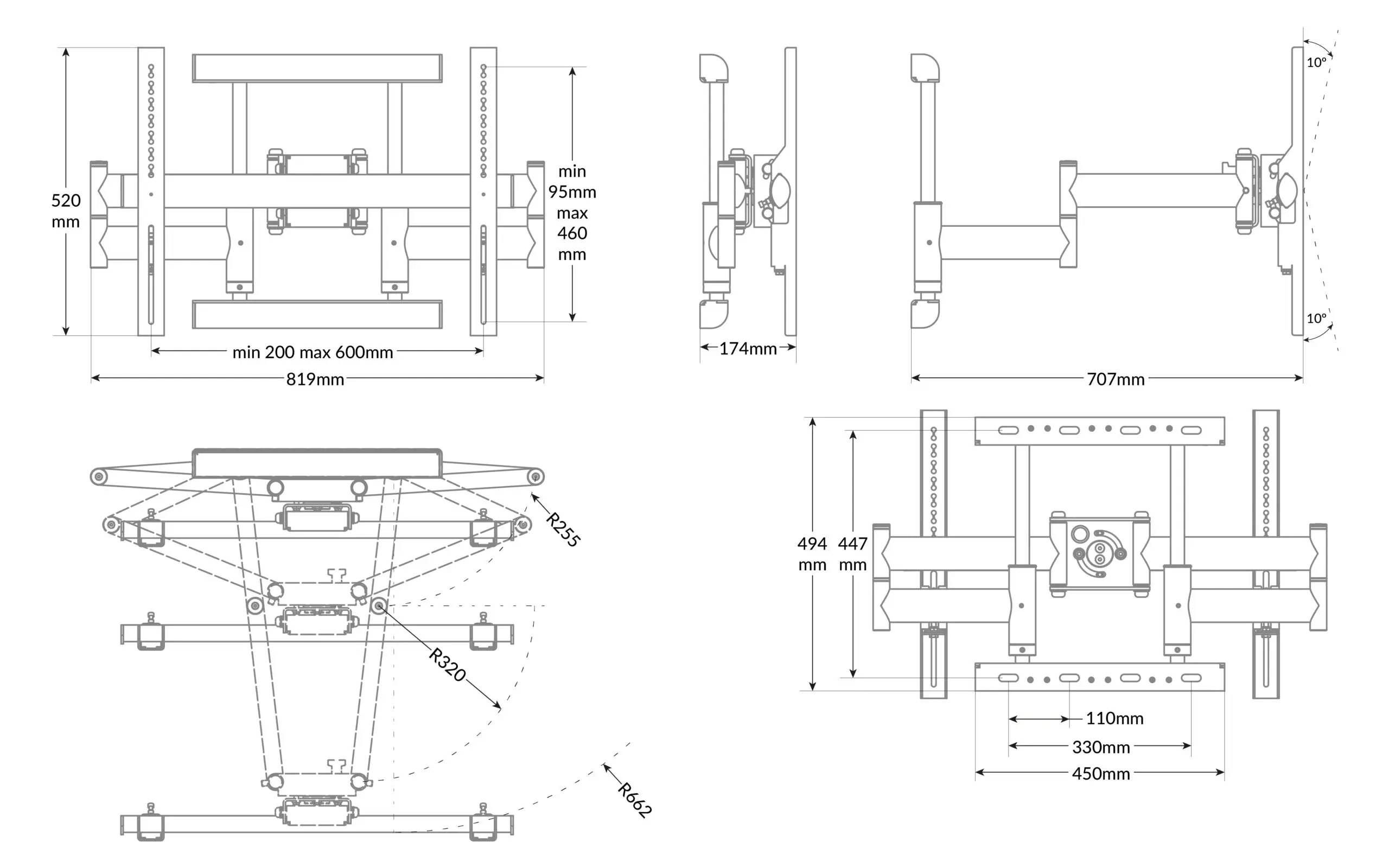

| Product dimensions | W: 819 mm D: 174 mm H: 520 mm (W: 32.24″ D: 6.85″ H: 20.47″) |
| Product weight | 21.5 kg 47 lb |
| Max. distance from mounting surface | 707 mm (27,83″) |
| Min. distance from mounting surface | 174 mm (6,85″) |
| Max. mounting pattern | 600 mm x 460 mm |
| Min. mounting pattern | 200 mm x 95 mm |
| SAP Index | WUSC-RMSA1 |
| EAN code | 5908252968664 |
| Color | Black |
| Package dimensions | 850 mm x 520 mm x 160 mm (33.46″ x 20.47″ x 6.30″) |
| Package weight | 22 kg (49 lb) |
| HS Code (Harmonized System ) | 732690 |
| HTS code (Harmonized Tariff Schedule ) | 7326909890 |
| Country of origin | Poland |
