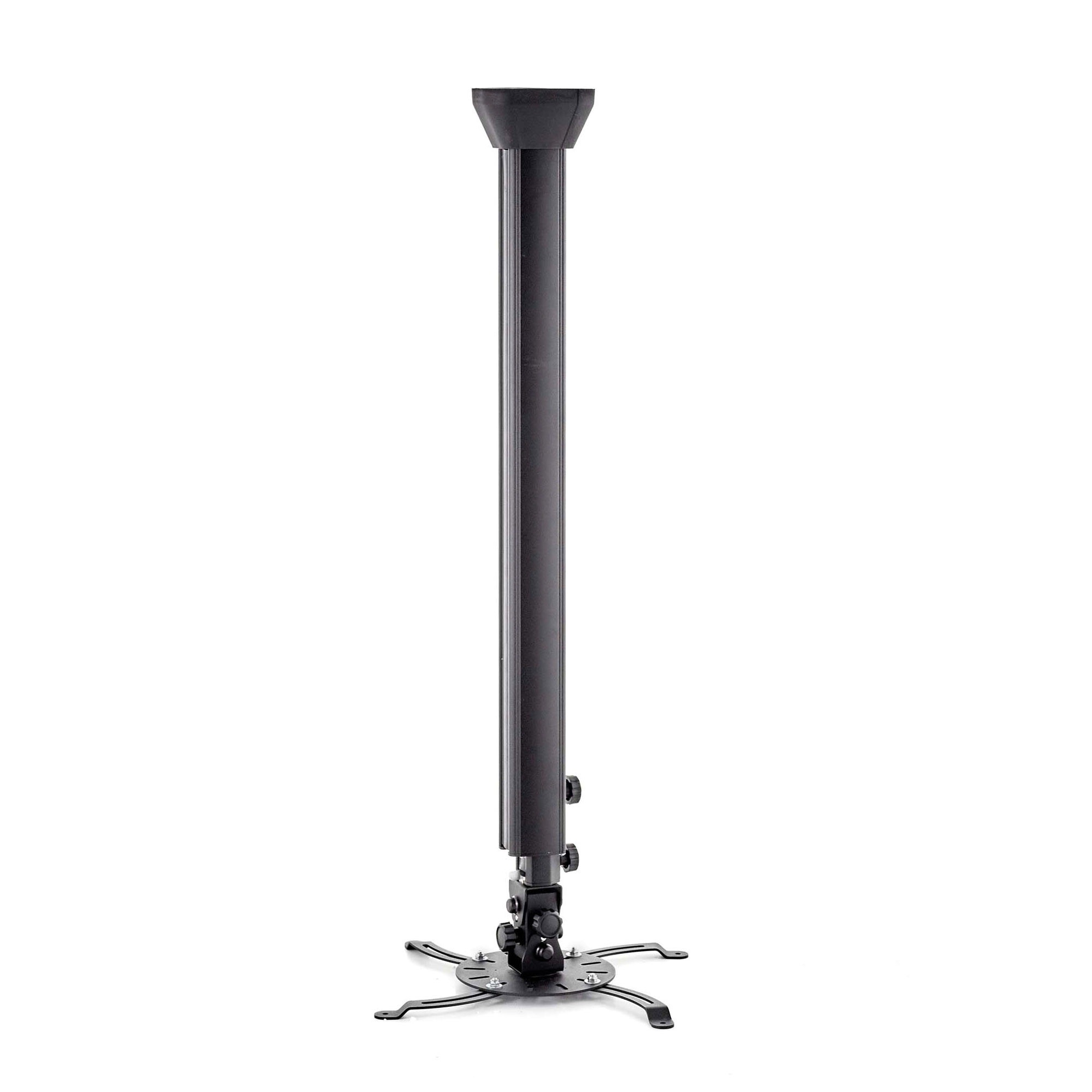

PMV300 is a professional ceiling mount designed for demanding AV installations, where both aesthetics and full technical functionality are important. Thanks to its large adjustment range and robust aluminum construction, it will be perfect for spaces with high ceilings – such as conference rooms, auditoriums, lecture halls or public facilities.
🔹 Modern design and precise finish
The handle features an elegant design and is available in powder-coated or anodized finish. This solution is not only durable, but also aesthetically pleasing – it blends well with modern interior design.
🔹 Sturdy aluminum construction
The sturdy aluminum construction provides a maximum load of up to 30 kg, guaranteeing safe mounting of even heavier projectors.
🔹 Advanced height adjustment range
PMV300 offers an exceptionally wide range of adjustment of distance from the ceiling: from 1000 mm to 1700 mm, making it an ideal choice for rooms with high heights.
🔹 Micro-adjustment of the projector’s position
The built-in micro-adjustment mechanism allows precise positioning of the projector without disassembly – making installation and post-installation adjustments easier.
🔹 Projector rotation up to 50° horizontally
The horizontal rotation capability allows the projector’s position relative to the screen to be accurately adjusted, even when the mounting point is offset.
🔹 Integrated conduit for cables
The mounting tube has an internal space for cable organization to hide wiring and keep the installation aesthetically pleasing.
🔹 Mounting versatility and aesthetic finish
Thanks to its adjustable mounting arms, the mount fits a wide range of projectors. It also comes with a ceiling bezel that covers the mounting elements and emphasizes the professional nature of the installation.
| Product dimensions | W: 180 mm D: 180 mm H: 1000 mm (W: 7.08″ D: 7.08″ H: 39.37″) |
| Product weight | 6 kg (13.22 lb) |
| Maximum distance from the mounting surface | 1700 mm (66.92″) |
| Minimum distance from the mounting surface | 1000 mm (39.37″) |
| Max. assembly pattern | 420 mm (16.54″) |
| Min. assembly pattern | 50 mm (1.96″) |
| SAP Index | WUSU-PMV300 |
| EAN code | 5902841112131 |
| Color | Black |
| Package dimensions | W: 990 mm D: 210 mm H: 160 mm (W: 38.97″ D: 8.26″ H: 6.29″) |
| Package weight | 6.4 kg (14.10 lb) |
| HS Code (Harmonized System ) | 732690 |
| HTS code (Harmonized Tariff Schedule ) | 7326909890 |
| Country of origin | Poland |
