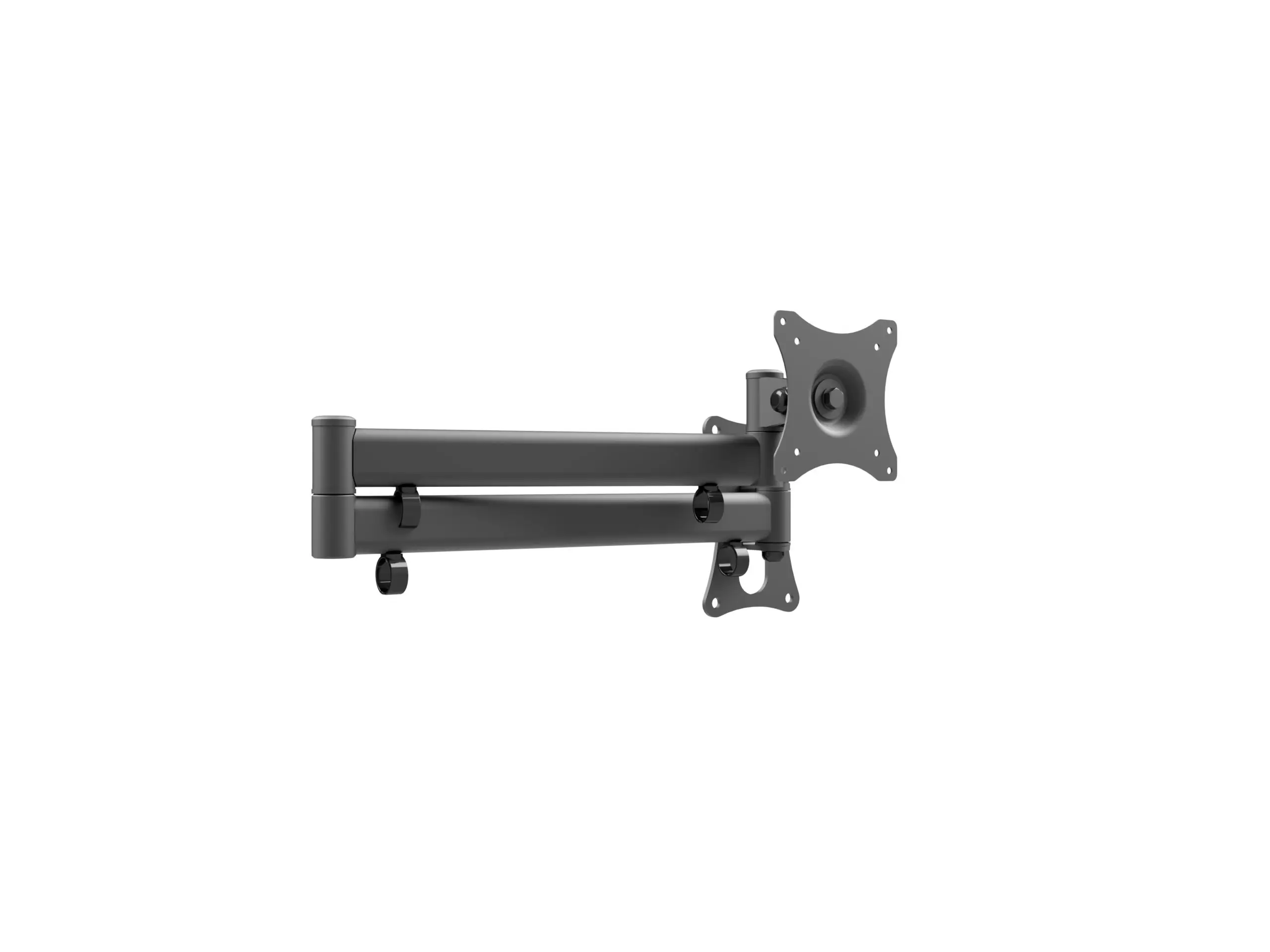

Universal GD18 swing arm wall mount wall mount dedicated to small screens ranging from 10″ to 29″. It’s simple design makes it quick and easy to install on walls of various structures. GD18 occupies a small area and has the option of positioning the screen vertically or horizontally (360° head rotation). The mount has a long outreach and the possibility of tilting the screen by +50°, which allows any adjustment of screen position and increases the comfort of use.
| Product dimensions | W: 115 mm D: 792 mm H: 228 mm (W: 4.53″ D: 31.18″ H:8.98″) |
| Product weight | 2 kg (4 lb) |
| Max. distance from mounting surface | 792 mm (31,18″) |
| Min. distance from mounting surface | 108 mm (4,25″) |
| Max. mounting pattern | 100 mm x 100 mm |
| Min. mounting pattern | 75 mm x 75 mm |
| Index | WUSC-GD18c-B |
| EAN code | 5902841103504 |
| Color | black |
| Package dimensions | 425 mm x 250 mm x 100 mm (16.73″ x 9.84″ x 3.94″) |
| Package weight | 2.5 kg (6 lb) |
| HS Code (Harmonized System ) | 732690 |
| HTS code (Harmonized Tariff Schedule ) | 7326909890 |
| Country of origin | Poland |
