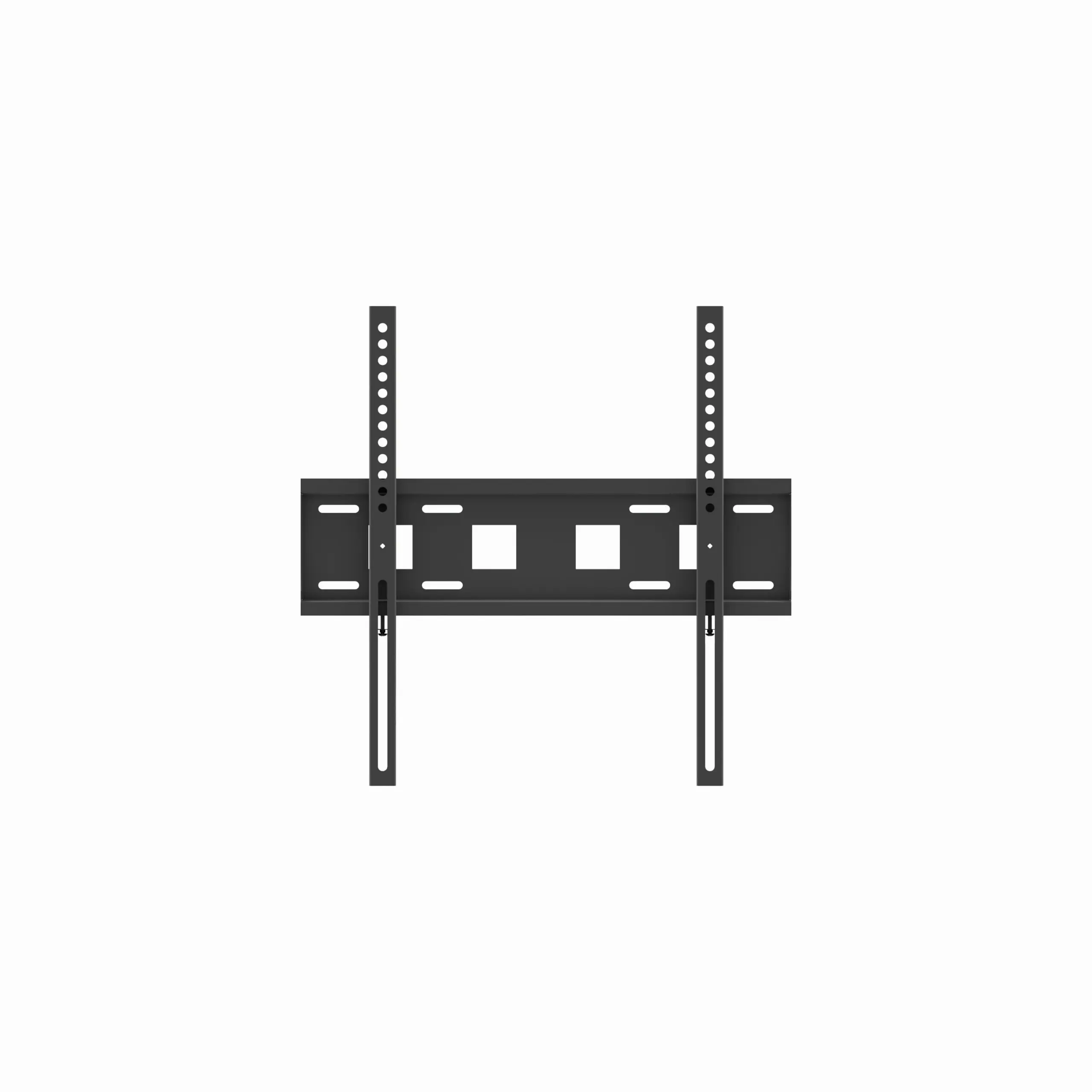

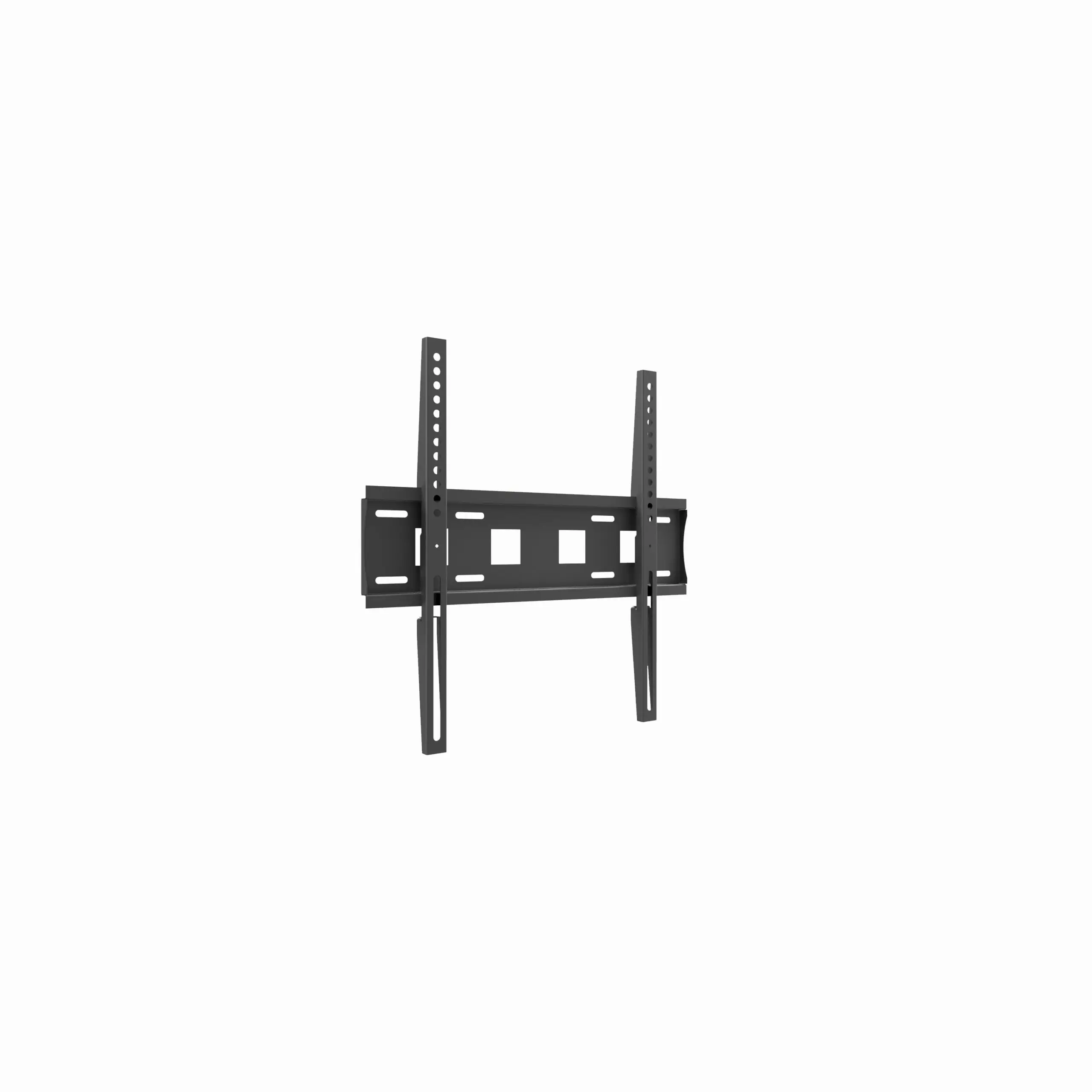

This robust tv wall bracket is compatible with VESA patterns ranging from 75×75 to 400×400, and it supports loads up to 15 kg.
Designed for both residential and commercial use, FSM100 delivers strong screen protection against accidental falling. It’s compatible with tv wall mount setups on concrete, plaster, or wooden walls. With its minimalist appearance and easy installation, it is perfect for conference rooms, public spaces, or office environments.

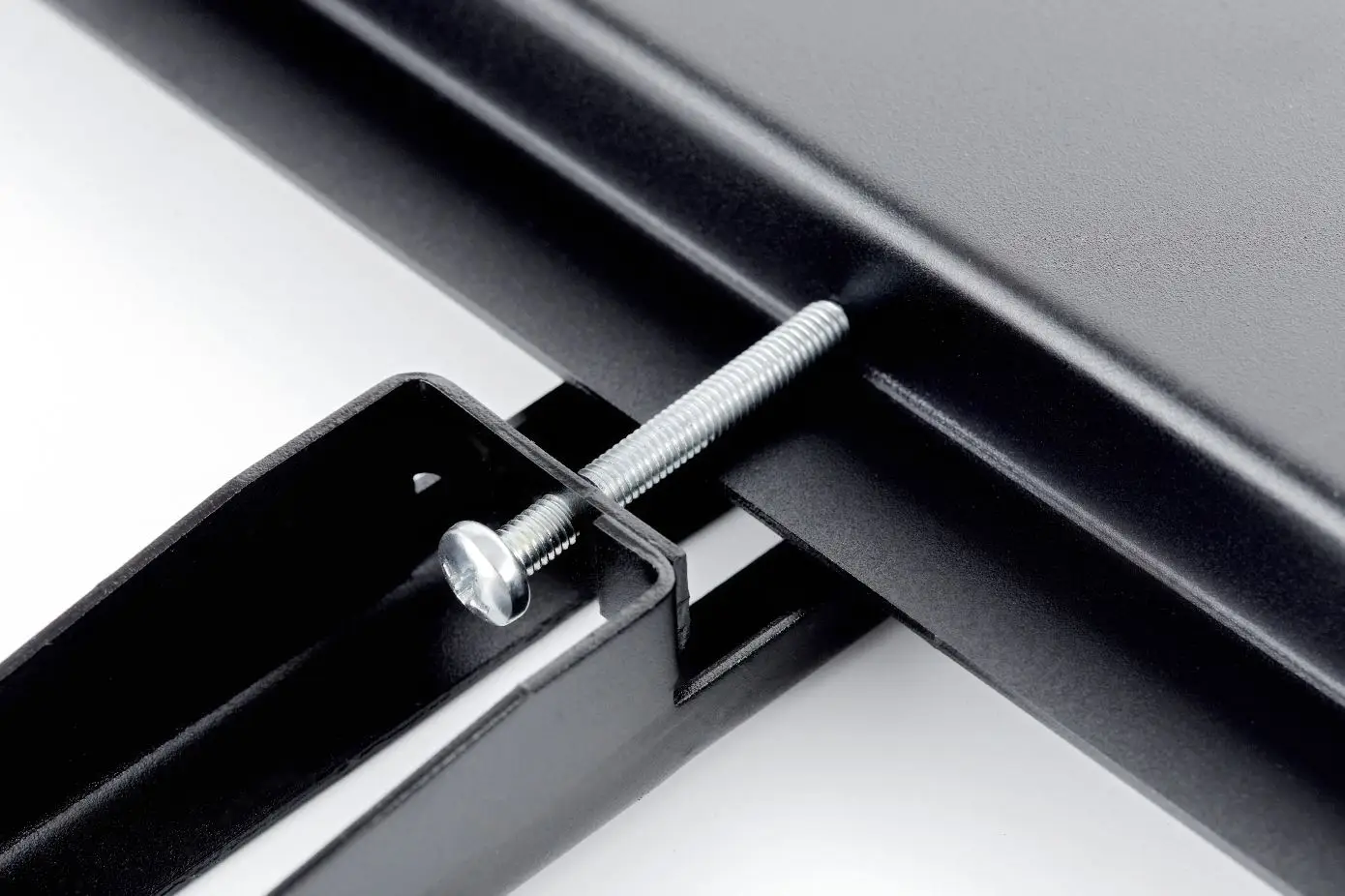

The vesa mount ensures lateral adjustment of the screen after installation, allowing flexibility in alignment. It also includes mounting screws and features a solid construction that meets safety standards. Whether you’re upgrading your home entertainment area or setting up digital signage, the FSM100 tv bracket ensures secure and aesthetic integration.
| Index | FSM100 |
| Category | Fixed wall brackets |
| Product group | Mounts for screens / monitors |
| Color | Black |
| Warranty | 5-year limited |
| Number of screens | 1 |
| Minimum screen size | 32″ |
| Maximum screen size | 55″ |
| Maximum load | 15 kg |
| VESA mounts | 75×75 to 400×400 |
| Product dimensions | W: 450 mm D: 26 mm H: 440 mm (W: 17.71″ D: 1.02″ H: 17.32″) |
| Product weight | 0.85 kg (1.87 lb) |
| Max. distance from mounting surface | 26 mm (1,02″) |
| Min. distance from mounting surface | 26 mm (1,02″) |
| Max. mounting pattern | 422 mm x 402 mm |
| Min. mounting pattern | 25 mm x 75 mm |
| Index | WUSC-FSM100 |
| EAN code | 5902841139565 |
| Color | black |
| Package dimensions | 455 mm x 130 mm x 30 mm (7.91″ x 5.11″ x 1.1″) |
| Package weight | 1.0 kg (2.2 lb) |
| HS Code (Harmonized System ) | 732690 |
| HTS code (Harmonized Tariff Schedule ) | 7326909890 |
| Country of origin | Poland |
